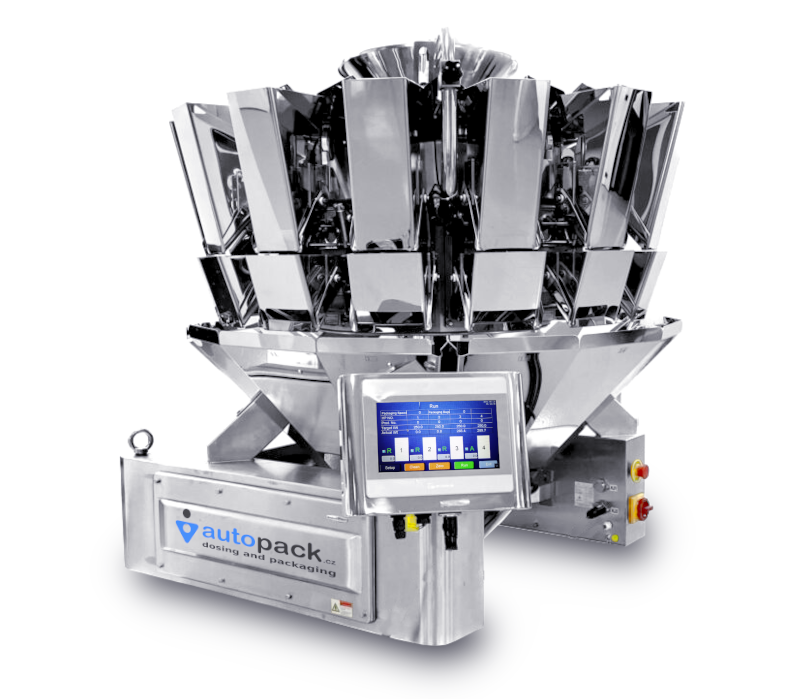

Multihead Weighers
Multihead weighers are suitable for dispensing a variety of dry, processed or fresh food products such as frozen vegetables, seeds, pulses, granular or granulated instant coffee, tea, sugar, small bakery products, candies and confectionery, rice, nuts, dried fruits, spices, pasta, granulated feeds, etc. Scales can also be used in non-food industries, for example for dosing nuts, bolts, washers, electrical components, automotive components, etc.
Multihead weighers can be supplied with accessories as a complete weighing system or as a weighing system integrated into existing packaging lines. A range of options are available to assist in batching and accurate inspection of selected products. Consult our sales team for advice on the best system for your product and requirements.
Advantages
- Stainless steel (AISI 304)
- Rounded edges for hygienic cleaning
- Weighing unit also on the centre cone
- Stepper motors for opening pockets
- 10.4″ touch screen
- Automatic zeroing (tare)
- Automatic calibration without the need for weights
- Stainless steel waterproof design
- 230 V power supply only
- “SD” function for easy passage of even large products
- Weighing and counting functions
- Ethernet access
- Display of the weight of each pocket
- Individual settings for each stream
Accessories
- PC software
- Tear plate for special applications
- Accumulation pocket for discarding non-combinable batches
- Sorting batches into two or more independent locations
- Printer
PC connection
- Optional software for PC synchronization with up to 16 combination scales
- Operating parameters
- Statistics
COMBI universally applicable series of Multihead weighters
The COMBI series offers a wide range of combination scales for automated weighing of foods such as coffee, sugar, pulses, etc. These scales offer high accuracy and speed in weighing and allow combining multiple types of products with a maximum speed of up to 80 batches per minute and a maximum weighing range of up to 3000 grams. We offer a wide range of accessories to facilitate your work as a complete weighing system or as a weighing system integrated into existing packaging lines.
Multihead weighters A10S-1.6: This weigher offers accurate weighing in the range of 10 – 3000 g with a scale resolution of 0.1 g. It features 10 weighing heads and a 1.6 litre pocket capacity, making it ideal for weighing food, spices and other raw materials. The scale’s output is up to 60 batches per minute, making it suitable for automated weighing in industry.
Multihead weighersA14S-1.6: This weigher offers the same features as the A10S-1.6, except that it has 14 weighing heads, increasing its output to 80 batches per minute. It is ideal for weighing smaller items or for weighing a larger number of products in a shorter period of time.
Multihead weighers A10S-2.5: This weigher offers the same features as the A10S-1.6 and A14S-1.6, except that it has a larger pocket volume of 2.5 litres. It is suitable for weighing larger quantities of raw materials or for weighing multiple products at once. The weighing capacity is up to 60 batches per minute, making it suitable for automated weighing in industry.
Multihead weighers A14-2.5: This weigher offers the same features as the A10S-2.5, except that it has 14 weighing heads, increasing its output to 80 batches per minute. It is ideal for weighing smaller items or for weighing a larger number of products in a shorter period of time, while maintaining a larger pocket volume. These scales can be used in the food industry for packaging various foods such as cereals, spices, powdered drinks, etc.
Type of weighters | Weighing range | Scale resolution | Volume of the pocket | Output (doses/min) | Power | Power input | Weight |
A10S-1.6 | 10 – 3000 g | 0,1 g | 1,6 Lit. | 60 | 230 V / 50 Hz | 1,5 kW | 340 kg |
A14S-1.6 | 10 – 3000 g | 0,1 g | 1,6 Lit. | 80 | 230 V / 50 Hz | 1,5 kW | 340 kg |
A10S-2.5 | 10 – 3000 g | 0,1 g | 2,5 Lit. | 60 | 230 V / 50 Hz | 2,0 kW | 410 kg |
A14-2.5 | 10 – 3000 g | 0,1 g | 2,5 Lit. | 80 | 230 V / 50 Hz | 2,0 kW | 410 kg |
Large selection of accessories.
- 10.4″ touchscreen display
- Operator guidance via menus 200 product-specific storage compartments
- Several freely available languages
- High performance with high precision
- Self-diagnostics and fault analysis
- Network readiness
- Updates via data carrier via
- USB Remote maintenance
- VPN statistical evaluation
- Data Acquisition
- Automatic performance optimization
- Average optimization
- Low cleaning frequencies
- Product-contact parts can be removed without tools
- Modular structure
- Dust-proof version available (IP67 and higher)
- Special version for adhesive products, fragile products, granular products
- PTB type approval
- Product feeding via weighing signal Automatic tare
- Precise and fast flap opening
- Maintenance-free, no return springs
- Low noise
- Failure detection in case of product adhesion
- Replaceable containers
COMBI PIKO series Multihead weighters for small doses
Our COMBI PIKO combination scales are ideal for weighing small to medium batches of food with great precision. They offer a wide weighing range from 1 to 100 g or 6 to 200 g. With a high weighing speed of up to 75 batches per minute. They have a large pocket capacity from 0.5 to 0.8 litres, allowing you to weigh larger quantities of product at a time.
In addition, we offer a wide range of accessories that can be customized to meet specific customer requirements.
The A10S-0.5 multiheaded weight is ideal for weighing small doses of food such as nuts, biscuits or cereals. With a weighing range of 1 – 100 g and a scale resolution of 0.01 g, it offers weighing accuracy at the highest level. Pocket volume 0.5 Lit. allows you to weigh larger quantities of product at once, and the high weighing speed of up to 55 portions per minute ensures efficiency and time savings. The scale is powered by 230 V / 50 Hz and has an input power of 1.5 kW. Weight 215 kg.
The multiheaded weight A14S-0.5 offers all the advantages of the A10S-0.5, but with a higher number of weighing heads – 14. This means a higher weighing speed of up to 75 doses per minute. Ideal for weighing different types of food such as nuts, biscuits, cereals or confectionery. The scale has the same parameters as the A10S-0.5.
A10S-0.8 multiheaded weight with a weighing range of 6 – 200 g and a scale resolution of 0.1 g. With a pocket volume of 0.8 Lit. You can weigh larger quantities of product at a time and the weighing speed of up to 60 batches per minute ensures high productivity. This scale is ideal for weighing foods such as fruit, vegetables, coffee or tea. The scale is powered by 230 V / 50 Hz and has an input power of 2.0 kW. Weight 215 kg.
The multiheaded weight A14-0.8 provides all the advantages of the A10S-0.8 with a larger number of weighing heads – 14, which means a higher weighing speed of up to 80 batches per minute. It is ideal for weighing different types of food such as fruit, vegetables, coffee or tea. The scale has the same parameters as the A10S-0.8.
Typ | Weighing range | Scale resolution | Volume of the pocket | Power (doses/min.) | Power | Power input | Weight |
A10S-0.5 | 1 – 100 g | 0,01 g | 0,5 Lit. | 55 | 230 V / 50 Hz | 1,5 kW | 215 kg |
A14S-0.5 | 1 – 100 g | 0,01 g | 0,5 Lit. | 75 | 230 V / 50 Hz | 1,5 kW | 271 kg |
A10S-0.8 | 6 – 200 g | 0,1 g | 0,8 Lit. | 60 | 230 V / 50 Hz | 2,0 kW | 215 kg |
A14-0.8 | 6 – 200 g | 0,1 g | 0,8 Lit. | 80 | 230 V / 50 Hz | 2,0 kW | 271 kg |
Large selection of accessories.
- 10.4″ touchscreen display
- Operator guidance via menus 200 product-specific storage compartments
- Several freely available languages
- High performance with high precision
- Self-diagnostics and fault analysis
- Network readiness
- Updates via data carrier via
- USB Remote maintenance
- VPN statistical evaluation
- Data Acquisition
- Automatic performance optimization
- Average optimization
- Low cleaning frequencies
- Product-contact parts can be removed without tools
- Modular structure
- Dust-proof version available (IP67 and higher)
- Special version for adhesive products, fragile products, granular products
- PTB type approval
- Product feeding via weighing signal Automatic tare
- Precise and fast flap opening
- Maintenance-free, no return springs
- Low noise
- Failure detection in case of product adhesion
- Replaceable containers
COMBI 5 Lit. series Multihead weighters for big doses
The COMBI 5 Lit. range of combination scales is ideal for weighing products up to 5 litres. With a weighing range of 10 – 5000 g and a scale resolution of 0.1 g, these scales offer weighing accuracy. The pocket volume of 5.0 Lit. allows you to weigh larger quantities of product at once and the high weighing speed of up to 35 batches per minute for the A10S-5.0 and up to 50 batches per minute for the A14S-5.0.
Multihead weighers A10S-5.0: the A10S-5.0 multihead weighers is ideal for weighing medium to large batches of food such as coffee beans, pulses or cereals. With a weighing range of 10 – 5000 g and a scale resolution of 0.1 g, it offers high weighing accuracy. The 5.0 litre pocket capacity allows you to weigh larger quantities of product at once and the weighing speed of up to 35 batches per minute ensures efficiency and time savings. The scale is powered by 230 V / 50 Hz and has an input power of 2.0 kW. Weight 600 kg.
Multihead weighers A14S-5.0: The A14S-5.0 multihead weighers offer all the advantages of the A10S-5.0, but with a larger number of weighing heads – 14. Ideal for weighing different types of food such as coffee beans, pulses, cereals or fruit and vegetables. The scale has the same parameters as the A10S-5.0, with a higher weight of 750 kg.
Typ | Weighing range | Scale resolution | Volume of the pocket | Power (doses/min.) | Power | Power input | Weight |
A10S-5.0 | 10 – 5000 g | 0,1 g | 5,0 Lit. | 35 | 230 V / 50 Hz | 2,0 kW | 600 kg |
A14S-5.0 | 10 – 5000 g | 0,1 g | 5,0 Lit. | 50 | 230 V / 50 Hz | 2,5 kW | 750 kg |
Large selection of accessories.
- 10.4″ touchscreen display
- Operator guidance via menus 200 product-specific storage compartments
- Several freely available languages
- High performance with high precision
- Self-diagnostics and fault analysis
- Network readiness
- Updates via data carrier via
- USB Remote maintenance
- VPN statistical evaluation
- Data Acquisition
- Automatic performance optimization
- Average optimization
- Low cleaning frequencies
- Product-contact parts can be removed without tools
- Modular structure
- Dust-proof version available (IP67 and higher)
- Special version for adhesive products, fragile products, granular products
- PTB type approval
- Product feeding via weighing signal Automatic tare
- Precise and fast flap opening
- Maintenance-free, no return springs
- Low noise
- Failure detection in case of product adhesion
- Replaceable containers
COMBI 20 multihead weighers for product mixing, high volumes or multi-point dosing
The COMBI 20 combination scales are ideal for accurate and fast weighing of food with a weighing range from 6 to 3000 grams. They offer high accuracy with a scale resolution of 0.1 grams and efficiency with a high speed of up to 80 batches per minute. With different pocket volumes, they are suitable for weighing smaller and larger quantities of products.
The multihead weighterA20S-0.5 is ideal for weighing small batches of food with a weighing range from 6 to 1500 grams and a scale resolution of 0.1 grams, offering weighing accuracy at the highest level. With a pocket volume of 0.5 litres, it is suitable for weighing smaller quantities of product and the high weighing speed of up to 60 batches per minute ensures efficiency and time saving.
The A20S-0.8 multihead weigher offers all the benefits of the A20S-0.5, but with more weighing heads and a higher pocket capacity of 0.8 litres. This means a higher weighing speed of up to 80 batches per minute. Ideal for weighing different types of food such as nuts, biscuits, cereals or confectionery.
The A20S-1.6 multihead weigher, with a pocket capacity of 1.6 litres and a weighing range from 10 to 3000 grams, offers a high capacity for weighing larger quantities of foods such as coffee, sugar or pulses. With a scale resolution of 0.1 grams and a high weighing speed of up to 80 batches per minute, it is an efficient solution for industrial production or wholesale.
The A20S-2.5 multihead weigher offers all the advantages of the A20S-1.6, but with a larger pocket volume of 2.5 litres. This means it is ideal for weighing large volumes of foodstuffs such as cereals, pulses or coffee. Like the A20S-1.6, it has a high weighing speed and high weighing accuracy.
The A20S-2.5 multihead weigher is the largest of our range, with a pocket capacity of 2.5 litres and a weighing range of 10-3000g. It is suitable for weighing large quantities of food such as cereals or coffee. The high output of up to 80 batches per minute ensures efficiency and time saving. The scale resolution is 0.1g, offering accurate weighing. It is ideal for the food or pharmaceutical industry where large quantities of product need to be weighed quickly and accurately.
Typ | Weighing range | Scale resolution | Volume of the pocket | Power (doses/min.) | Power | Power input | Weight |
A20S-0.5 | 6 – 1500 g | 0,1 g | 0,5 Lit. | 60 | 230 V / 50 Hz | 1,5 kW | 340 kg |
A20S-0.8 | 6 – 1500 g | 0,1 g | 0,8 Lit. | 80 | 230 V / 50 Hz | 1,5 kW | 340 kg |
A20S-1.6 | 10 – 3000 g | 0,1 g | 1,6 Lit. | 60 | 230 V / 50 Hz | 2,0 kW | 410 kg |
A20S-2.5 | 10 – 3000 g | 0,1 g | 2,5 Lit. | 80 | 230 V / 50 Hz | 2,0 kW | 410 kg |
Large selection of accessories.
- 10.4″ touchscreen display
- Operator guidance via menus 200 product-specific storage compartments
- Several freely available languages
- High performance with high precision
- Self-diagnostics and fault analysis
- Network readiness
- Updates via data carrier via
- USB Remote maintenance
- VPN statistical evaluation
- Data Acquisition
- Automatic performance optimization
- Average optimization
- Low cleaning frequencies
- Product-contact parts can be removed without tools
- Modular structure
- Dust-proof version available (IP67 and higher)
- Special version for adhesive products, fragile products, granular products
- PTB type approval
- Product feeding via weighing signal Automatic tare
- Precise and fast flap opening
- Maintenance-free, no return springs
- Low noise
- Failure detection in case of product adhesion
- Replaceable containers
COMBI 32 multihead weighers for product mixing, high volumes or multi-point dosing
With a weighing range from 6 to 1500 g, a scale resolution of 0.1 g and a pocket volume from 0.5 to 1.6 litres, our COMBI 32 combination scales offer high weighing accuracy and the ability to weigh larger quantities of product at once. These scales have a high weighing speed of up to 160 batches per minute (2 x 75 batches/min, 4 x 35 batches/min) and are equipped with intelligent software for automatic scale control. With our A32S combination scales, you can weigh different kinds of products according to your requirements.
The A32S-0.5 multihead weighter is ideal for weighing small batches of food with a weighing range of 6 – 1500 g and a scale resolution of 0.1 g. The high weighing speed of up to 160 batches per minute, thanks to 32 weighing heads, ensures efficiency and time saving. A pocket volume of 0.5 litres allows you to weigh larger quantities of product at once. The scale is powered by 230 V / 50 Hz and has an input power of 4.0 kW. Weight 760 kg.
The A32S-0.8 multihead weigher offers all the advantages of the A32S-0.5 but with a larger pocket volume of 0.8 litres. This means it can weigh larger quantities of product at once and still remain high speed weighing up to 160 batches per minute.
The A32S-1.0 multihead weigher provides all the benefits of the A32S-0.8 but with an even larger pocket volume of 1.0 litre. This allows you to weigh even more product at once, all at a high weighing speed of up to 160 batches per minute.
Typ | Weighing range | Scale resolution | Volume of the pocket | Output | Power | Power input | Weight |
A32S-0.5 | 6 – 1500 g | 0,1 g | 0,5 Lit. | up to 160 doses/min. (2 x 75 doses/min.) (4 x 35 doses/min.) | 230 V / 50 Hz | 4,0 kW | 760 kg |
A32S-0.8 | 6 – 1500 g | 0,1 g | 0,8 Lit. | up to 160 doses/min. (2 x 75 doses/min.) (4 x 35 doses/min.) | 230 V / 50 Hz | 4,0 kW | 760 kg |
A32S-1.0 | 10 – 3000 g | 0,1 g | 1,6 Lit. | up to 160 doses/min. (2 x 75 doses/min.) (4 x 35 doses/min.) | 230 V / 50 Hz | 4,0 kW | 760 kg |
Large selection of accessories.
- 10.4″ touchscreen display
- Operator guidance via menus 200 product-specific storage compartments
- Several freely available languages
- High performance with high precision
- Self-diagnostics and fault analysis
- Network readiness
- Updates via data carrier via
- USB Remote maintenance
- VPN statistical evaluation
- Data Acquisition
- Automatic performance optimization
- Average optimization
- Low cleaning frequencies
- Product-contact parts can be removed without tools
- Modular structure
- Dust-proof version available (IP67 and higher)
- Special version for adhesive products, fragile products, granular products
- PTB type approval
- Product feeding via weighing signal Automatic tare
- Precise and fast flap opening
- Maintenance-free, no return springs
- Low noise
- Failure detection in case of product adhesion
- Replaceable containers
