Metal detectors
We offer you a solution to protect your products and brand from the negative effects of metal contamination. Our metal detectors are capable of detecting all types of metallic contaminants in packaged and unpackaged foods, including stainless steel, ferrous metals (Fe) and non-ferrous metals copper, aluminum.
Thanks to their high sensitivity and stable performance, you can rely on detection even at high production speeds and larger product quantities. The automatic learning function allows for quick set-up of new products and the wide range of rejection systems ensures safe disposal of contaminated products.
With a belt stop function at the base of detection, we minimize the risk of spreading contamination to other products. In addition, we offer the possibility of customising our metal detectors to your specific requirements. A set of test standards is included to verify the correct function and reliability of the detector.
- High sensitivity and stable performance.
- Auto-learning function for quick setup of a new product.
- A wide range of knockout systems.
- Belt stop function when detected in the base.
- Customization options.
- Set of test standards included.

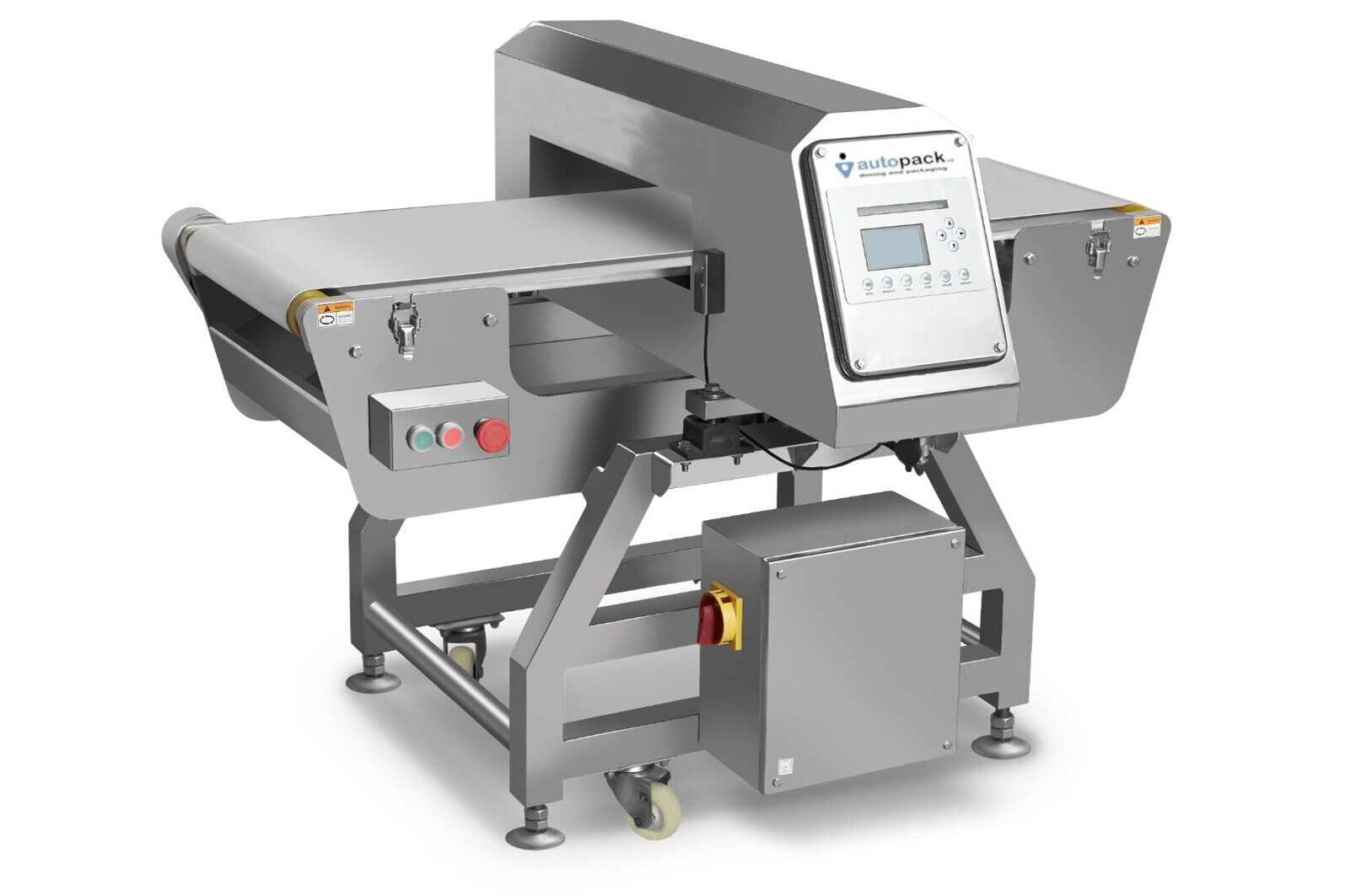

AMD Automatic conveyor metal detector for small products
The AMD category of automatic conveyor metal detectors offers reliable detection of metal contaminants in food production lines with high sensitivity and stable performance. The auto-learning function makes setting up new products quick and easy. A wide range of decommissioning systems allows customization to specific production needs. The function of stopping the belt when detected in the base and the possibility to adapt to customer requirements bring additional benefits for the safety and efficiency of the production process. A set of test standards is included, ensuring the reliability of the detectors and facilitating regular checks.
With our AMD-20 metal detector, you can be assured of high sensitivity and stable performance, detecting all metal contaminants in packaged and unpackaged foods, including stainless steel, ferrous metals (Fe) and non-ferrous metals copper, aluminium. The auto-learning feature allows you to quickly and easily adjust the detector for new products. In addition, we offer a wide range of knockout systems, including a stop strip function when detecting in the base. The AMD-20 detector is designed to meet the requirements of our customers, so we also offer options to customize the detector to your individual requirements. A set of test standards is also included to verify the performance of the detector.
With our AMD-30 metal detector you get high sensitivity and stable performance in detecting all metal contaminants in packaged and unpackaged food, including stainless steel, ferrous metals (Fe) and non-ferrous metals copper, aluminium. With the auto-learning function, you can quickly and easily set up the detector for new products. In addition, we offer a wide range of knockout systems, including a stop strip function when detecting in the base. The AMD-30 detector allows detection of metal contaminants in products up to 150 mm in height with a detection rate of up to 120 pieces/min. We also offer options to customize the detector to your individual requirements. A set of test standards is included to verify the performance of the detector.
Typ | AMD-20 | AMD-30 | ||||
Product height (mm) | 50 | 80 | 50 | 80 | 120 | 150 |
Expected sensitivity Fe bead min. (mm) | Φ0,5 | Φ0,5 | Φ0,5 | Φ0,5 | Φ0,6 | Φ0,7 |
Expected sensitivity SUS bead min. (mm) | Φ0,8 | Φ0,8 | Φ0,8 | Φ1,0 | Φ1,2 | Φ1,5 |
Output up to (pieces/min.) | 130 | 120 | ||||
Product width (mm) | 200 | 300 | ||||
Belt capacity up to (kg) | 5 | 10 | ||||
Belt width (mm) | 160 | 260 | ||||
Power | 230 V / 50 Hz | 230 V / 50 Hz | ||||
Belt speed (m/min.) | 25 | 25 | ||||
AMD Automatic conveyor metal detector for large products
The AMD category of automatic conveyor metal detectors offers reliable detection of metal contaminants in food production lines with high sensitivity and stable performance. The auto-learning function makes setting up new products quick and easy. A wide range of decommissioning systems allows customization to specific production needs. The function of stopping the belt when detected in the base and the possibility to adapt to customer requirements bring additional benefits for the safety and efficiency of the production process. A set of test standards is included, ensuring the reliability of the detectors and facilitating regular checks.
The AMD-40 is an automatic conveyor metal detector with a product height of up to 80 mm and a strip width of 360 mm. With an expected sensitivity to Fe ball of at least Φ0.5 mm and to SUS ball of at least Φ1.0 mm, it offers high sensitivity and stable performance. The auto-learning function makes quick setup of a new product easy and with a wide range of knockout systems, it is suitable for various types of food applications. The belt stop function when detected in the base ensures safety and reliability and with the ability to customize to customer requirements, it is a great choice for all food businesses. A set of test standards is included.
The AMD-50 is an Automatic Conveyor Metal Detector with a product height of up to 120mm and a belt width of 460mm. With an expected sensitivity to Fe ball of at least Φ0.6 mm and to SUS ball of at least Φ1.2 mm, it offers high sensitivity and stable performance. The auto-learning function enables fast new product setup and the wide range of knockout systems guarantees a high level of safety. With the function of stopping the belt when detected in the base and the possibility of customization to customer requirements, the AMD-50 is ideal for all food processing enterprises. A set of test standards is also included.
The AMD-60 is an Automatic Conveyor Metal Detector with a product height of up to 250 mm and a belt width of 560 mm. With an expected sensitivity to Fe ball of at least Φ0.7 mm and to SUS ball of at least Φ1.5 mm, the AMD-60 offers high sensitivity and stable performance. The auto-learning function enables fast new product setup and the wide range of knockout systems guarantees a high level of safety. With the function of stopping the belt when detected in the base and the possibility of customization to customer requirements, the AMD-60 is ideal for all food processing enterprises. A set of test standards is also included.
Typ | AMD-40 | AMD-50 | AMD-60 | ||||||||
Product height (mm)1) | 80 | 120 | 150 | 180 | 250 | 200 | 250 | 300 | 350 | 250 | 300 |
Expected sensitivity Fe bead min. (mm) | Φ0,5 | Φ0,6 | Φ0,7 | Φ0,8 | Φ1,0 | Φ0,8 | Φ1,0 | Φ1,2 | Φ1,5 | Φ1,2 | Φ1,5 |
Expected sensitivity SUS bead min. (mm) | Φ1,0 | Φ1,2 | Φ1,5 | Φ2,0 | Φ2,5 | Φ2,0 | Φ2,5 | Φ2,5 | Φ3,0 | Φ2,5 | Φ3,0 |
Product width | 400 mm | 500 mm | 600 mm | ||||||||
Load capacity of the belt up to | 10 kg | 20 kg | 25 kg | ||||||||
Belt width | 360 mm | 460 mm | 560 mm | ||||||||
Power | 230 V / 50 Hz | ||||||||||
Belt speed | 25 m/min. | ||||||||||
AMD-G Gravity metal detector
Our family of metal detectors with gravity detection principle is designed specifically for the detection of metallic impurities in powders, granules and other bulk products. These detectors are compact in design and take up minimal space, making them the ideal solution for operations with limited space. With their high sensitivity to metal contaminants and ease of use, these detectors are the ideal tool for ensuring the quality and safety of your products. In addition, these detectors are easily integrated into your production line, minimizing interference with your production. With our metal detectors, you get peace of mind that your products comply with the highest quality and safety standards
The AMD-G-50 is a gravity metal detector with a 50 mm bore diameter. Its compact design and small footprint make it ideal for detecting powders, granules and other bulk products. The detection performance of 1 t/h is ensured by the sensitivity to metals with a diameter of at least 0.5 mm for Fe and 1.0 mm for SUS. The AMD-G-50 operates at temperatures from 10 to 40 °C and ambient humidities up to 80%. The power supply of the machine is 230 V / 50 Hz, and a pressure of 0.5 MPa is required for compressed air.
The AMD-G-75 is a gravity metal detector with a bore diameter of 75 mm. It is ideal for the detection of powders, granules and other bulk products. The detection performance of 3 t/h is ensured by the sensitivity to metals with a diameter of at least 0.6 mm for Fe and 1.2 mm for SUS. The AMD-G-75 operates at temperatures from 10 to 40 °C and ambient humidities up to 80%. The power supply of the machine is 230 V / 50 Hz, and a pressure of 0.5 MPa is required for compressed air.
The AMD-G-100 is a gravity metal detector with a bore diameter of 100 mm. It is ideal for the detection of powders, granules and other bulk products. The detection performance of 5 t/h is ensured by the sensitivity to metals with a diameter of at least 0.7 mm for Fe and 1.3 mm for SUS. AMD-G-100 operates at temperatures from 10 to 40 °C and ambient humidities up to 80%. The power supply of the machine is 230 V / 50 Hz, and a pressure of 0.5 MPa is required for compressed air.
The AMD-G-150 is a gravity metal detector with a bore diameter of 150 mm. It is ideal for the detection of powders, granules and other bulk products. The detection performance of 10 t/h is ensured by the sensitivity to metals with a diameter of at least 0.8 mm for Fe and 1.5 mm for SUS. The AMD-G-150 operates at temperatures from 10 to 40 °C and ambient humidities up to 80%. The power supply of the machine is 230 V / 50 Hz, and a pressure of 0.5 MPa is required for compressed air
| Typ | AMD-G-50 | AMD-G-75 | AMD-G-100 | AMD-G-150 |
| Hole diameter | Φ50 mm | Φ75 mm | Φ100 mm | Φ150 mm |
| The diameter of the detection head affects the sensitivity, so it comes in several sizes. | ||||
| Detection performance | 1 t/h | 3 t/h | 5 t/h | 10 t/h |
| The detection power per hour is related to the weight of the product, the value is calculated according to the density of water (1000 kg/m3). | ||||
| Expected sensitivity | Fe Φ0,5 mm SUS Φ1,0 mm | Fe Φ0,6 mm SUS Φ1,2 mm | Fe Φ0,7 mm SUS Φ1,3 mm | Fe Φ0,8 mm SUS Φ1,5 mm |
| The expected sensitivity is the result of testing only the test sample inside the pipe. Actual sensitivity may be affected by the product. | ||||
| Ambient temperature | Teplota 10 – 40°C | |||
| Environmental humidity | do 80% | |||
| Power | 230 V / 50 Hz | |||
| Compressed air | 0,5 MPa, spotřeba vzduchu je pouze při vyřazení produktu. | |||
